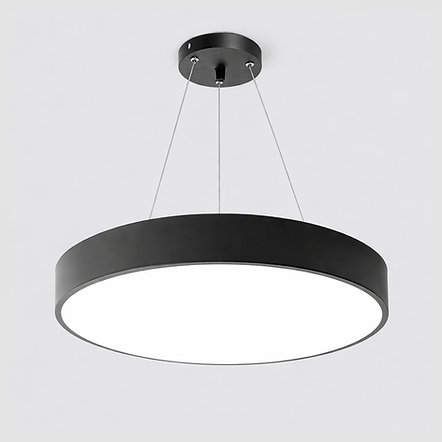

Drum Light
AM242500003
Series: Orbital Echo
Product Type: Drum Pendant Light
Mounting: Suspended
Environment: Indoor
Model Code: AM242500003
About Light
Amilite Drum Light is a decorative yet functional luminaire designed to create soft, diffused ambient illumination. Its elegant circular profile makes it ideal for hospitality, residential, lounge, and premium commercial interiors.
​
Engineered for comfort and visual harmony, it features a high-quality driver that ensures smooth light output and dependable performance.
Applications
Decorative and general lighting for residential, commercial and hospitality interiors.
Construction & Materials
Optical Data
Electrical Data
Mechanical Data
Dimensions
Installation
LED Technology
Controls
Available Variants
Customization
Light Source: LED PCB
Beam Direction: Direct
Beam Angle: 120°
Reflector: Not applicable (used for spot lights)
Diffuser: Opal Acrylic
UGR: <21
Wattage: —
Input Voltage: 220–240V AC, 50/60Hz
Driver Type: On/Off
Power Factor: —
THD: <10%
Surge Protection: 2.5kV
Protection Class: Class II
Luminous Flux: 3000 lm
Lumen Efficacy: 100 lm/W
Housing: Metal
Finish: —
Ingress Protection: IP20
Operating Temperature: 0°C to +45°C
Diameter: 600 mm
Height: 70 mm
Indoor luminaire suitable for suspended installation.
Lifetime : L70B10: >50,000 Hours
CRI: >80 & CRI>90
Colour Consistency: SDCM 3
Standard Switchable On/Off
Power Options:15W – 100W
Light Source Options: LED PCB
Optics & Visual Comfort:
Opal Acrylic Diffuser – UGR <21
Prismatic Diffuser – UGR <19
CCT Options: 3000K / 4000K /6500K
Driver Options: On/Off · DALI-Tunable · DALI-Dimmable .Flicker Free
Mounting : Recessed and Suspended
Finish Options: Black · White · Custom (Available in muliple colour options)
Casing: Metal
Dimensions:
H 70mm. Diameter multiple options
Custom configurations are available on request to meet project-specific requirements.
